There are three kinds of signals associated with every module: inputs, outputs and clocks. The behavior of every module is described by the sequence of events that take place on these signals and can be most easily represented by an automaton. Thus, given a GALS system, we use automata to describe each of the communicating modules. Apart from this, there are one or more automata that describe the relations between the clocks. If the clocks are unrelated then they could be represented by a set of independent automata. Some of these clock automata are shown in the figure below:



The composition algorithm works as follows:

• The initial state is the product of the initial states of all the automata.
• From every composed state S_i = (a1,a2,...,ak), the next transition labeled by event, say e1, takes us to S_i+1 = (b1, a2, ... , bk). In the states corresponding to S_i, e1 may be enabled in some automata and not in other automata. The states where e1 was enabled move on to the next state, whereas in those automata where e1 is not enabled the state does not change. For example, state a2 of a certain automaton remains as it is, whereas a1 of some other automaton goes to b1, and ak goes to bk, on e1. This step is recursively repeated till all the states are exhausted to get the composed automaton. This procedure gives an asynchronous composition of 2 or more automata.


(c)  As we mentioned above, in our automata there are synchronous signals apart from the asynchronous ones. These need to be specially handled. We'll take an example to explain why synchronous signals need to be handled separately by our algorithm.

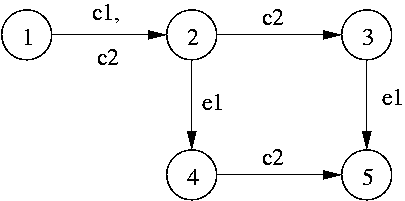

 Let e1 be an output event of some module M1 and let us assume that it is synchronous to clock c1 of the same module M1. Let c2 be some other clock in the system.  As shown in the automaton we go from state 1 to state 2 on c1 and c2. From state 2 there are two transition that are enabled, e1 and c2. If e1 is taken we go to state 4. However, if c2 is taken then we go from state 3 to state  4. From here e1 should not be allowed. This is because when c2 is taken it means that one clock period of c2 (T of c2) has elapsed after c1 took place. If e1 is synchronous with c1 then it has to be generated after small time after the clock c1. (This small time is negligible as compared to a clock period). If e1 happens after state 3, then e1 can no longer be considered synchronous to c1. This will violate the protocol of module M1.  Hence, e1 from state 3 has to be disabled. For taking care of such cases we define a field called synchronous_proximity at every composite state. This field stores all the clocks that have just transitioned. A synchronous event can take place from a composite state only if its corresponding clock is found in the synchronous_proximity list.

The other important thing that needs to be noted is that whenever a state is reached from two different paths then the synchronous_proximities obtained from the different paths should be the same. If not, the state is treated as inconsistent and is discarded by our current tool.  Since the states as well as the number of clocks are finite in most practical implementations, we would like to extend our tool so that the state information includes synchronous_proximity also to avoid inconsistent states.

For every automaton it is important that there is a separate starting state which is never reached again when the automaton is traversed.  This is important as we have considered its synchronous_proximity to be null i.e. {}. So, if this state is reached by any other path it will be marked inconsistent as described above.

The example shown on the website can provides important guidelines to the users of our automata composition tool.
