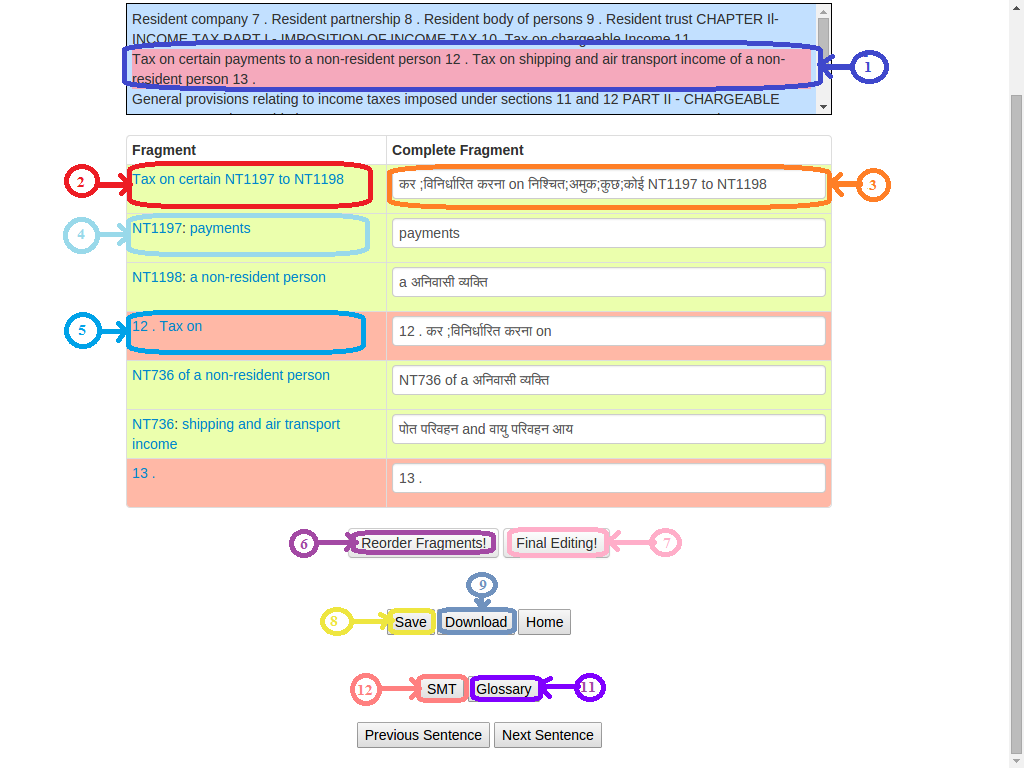

Figure 1: System UI

System UI

Description :


Complete system User Interface with all important features labeled using numbers.

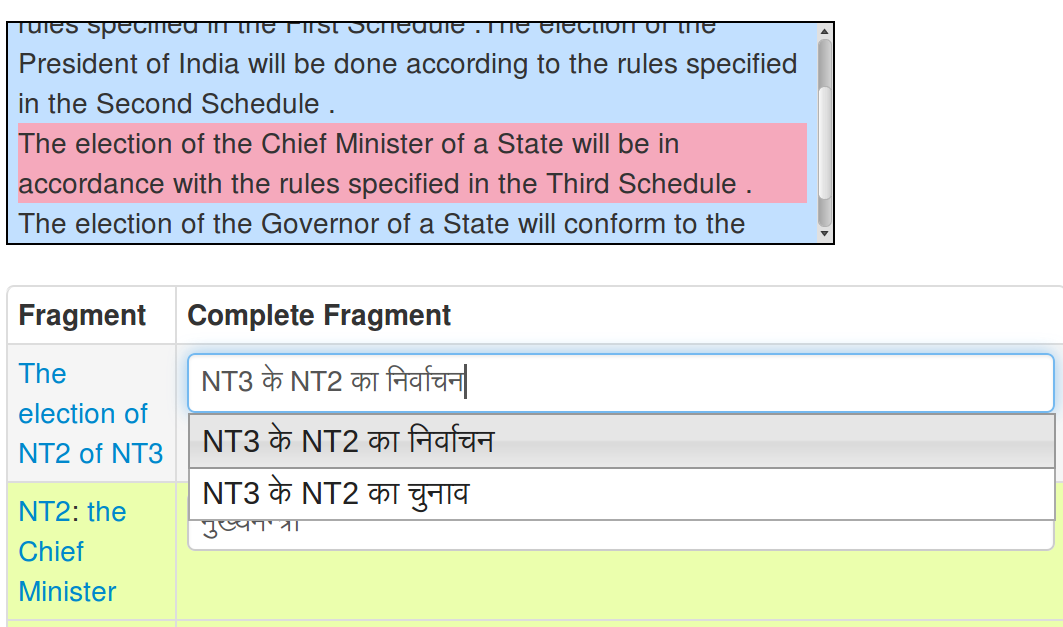

Figure 2: Multiple Translation suggestion

Multiple translation suggestion

Description :


If a user translates a pattern differently in different sentences where the pattern has occured, next time if the same pattern comes, user is shown multiple translation suggestion(based on previous translations of patterns)

Figure 3: If same pattern comes once again

if same pattern comes again

Description :


If same pattern appears again in some other sentence the system automatically translates the pattern

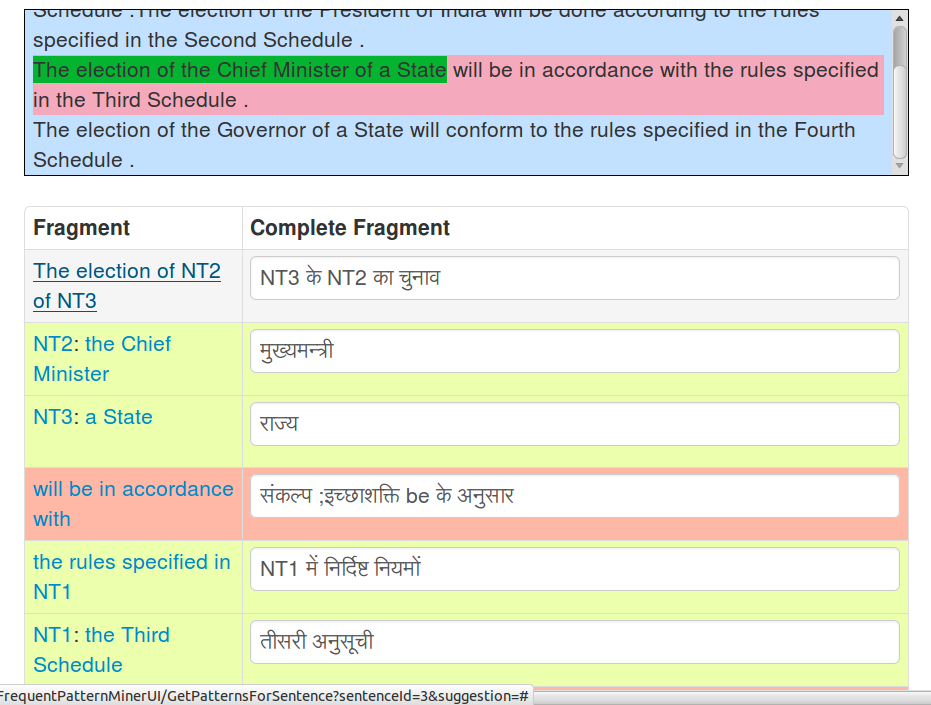

Figure 4: On hover Pattern in sentence gets highlighted

Pattern gets highlighted

Description :


While translating the pattern if user wants to see where this pattern has appeared in the sentence he/she can hover over the pattern and part of sentence covering the pattern gets highlighted.

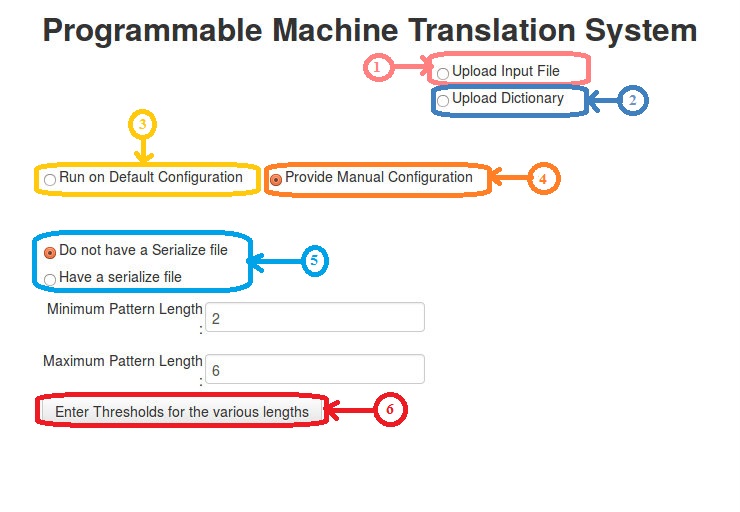

Figure 5: Providing configuration for FPM

System UI

Description :


Advanced users can even configure the frequent pattern miner. He/she can provide length parameter and corresponding threshold for each length. Novice users can just run FPM on default configuration by selecting "run on default configuration"

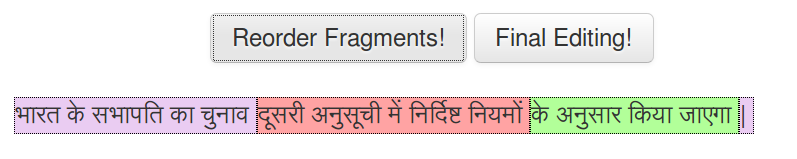

Figure 6: Reordering using System

System UI

Description :


Once all translatable units of a sentence are translated, users can click on reorder fragments and reorder the tranlsation units of sentnce by using simple drag and drop user in terface.

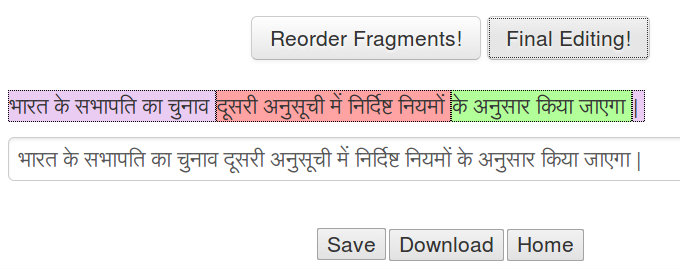

Figure 7: Final Editing using System

System UI

Description :


After reordering if user wish to make some edits on the reordered sentence he/she can edit the reordered sentence by clicking " final editing" button.

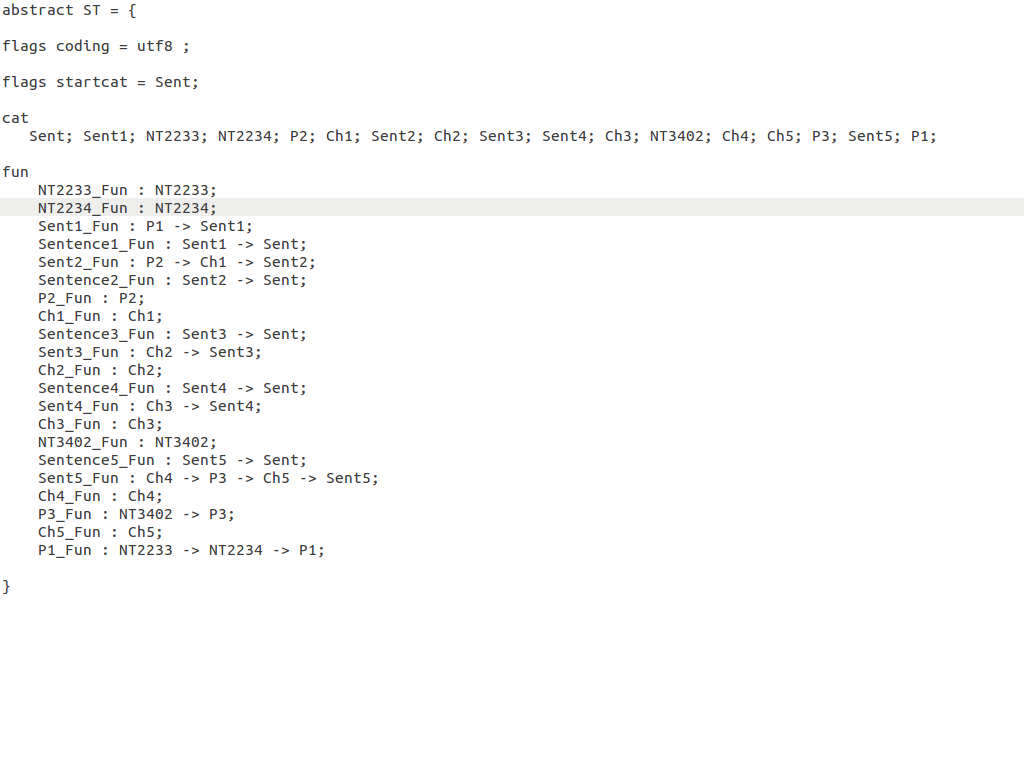

Figure 8: Abstract GF Grammar

Abstract grammar

Description :


Induced Abstract Grammatical Framework rule.

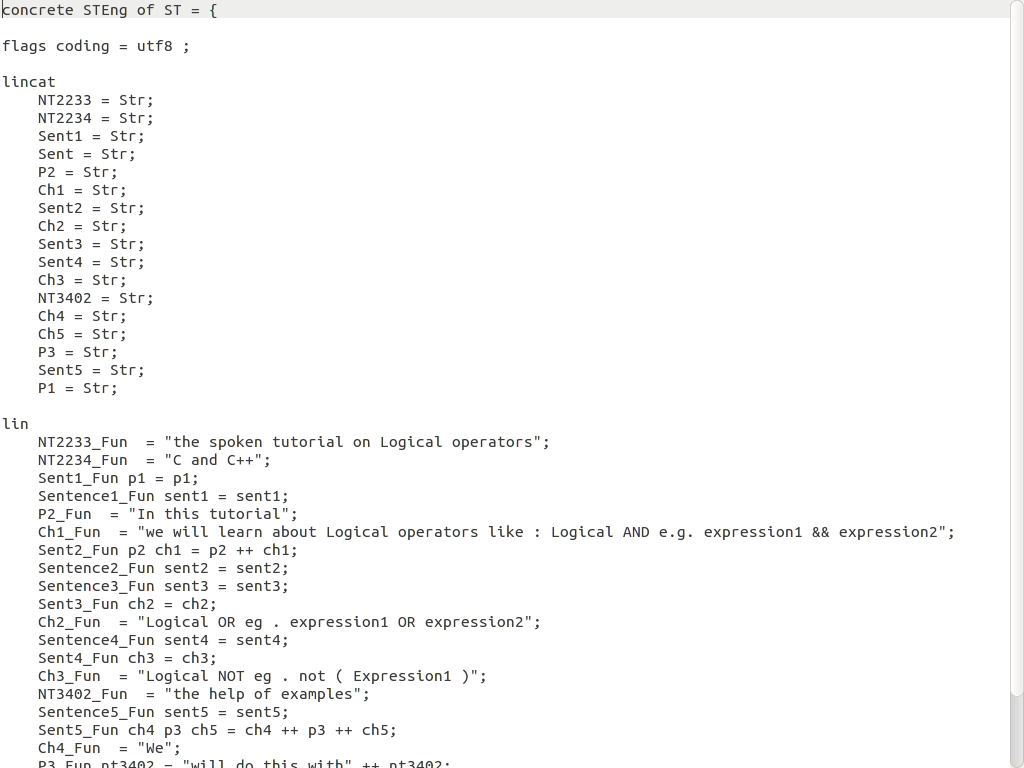

Figure 9: Concrete English GF Grammar

Concrete English

Description :


Induced Concrete English Grammatical Framework rule.

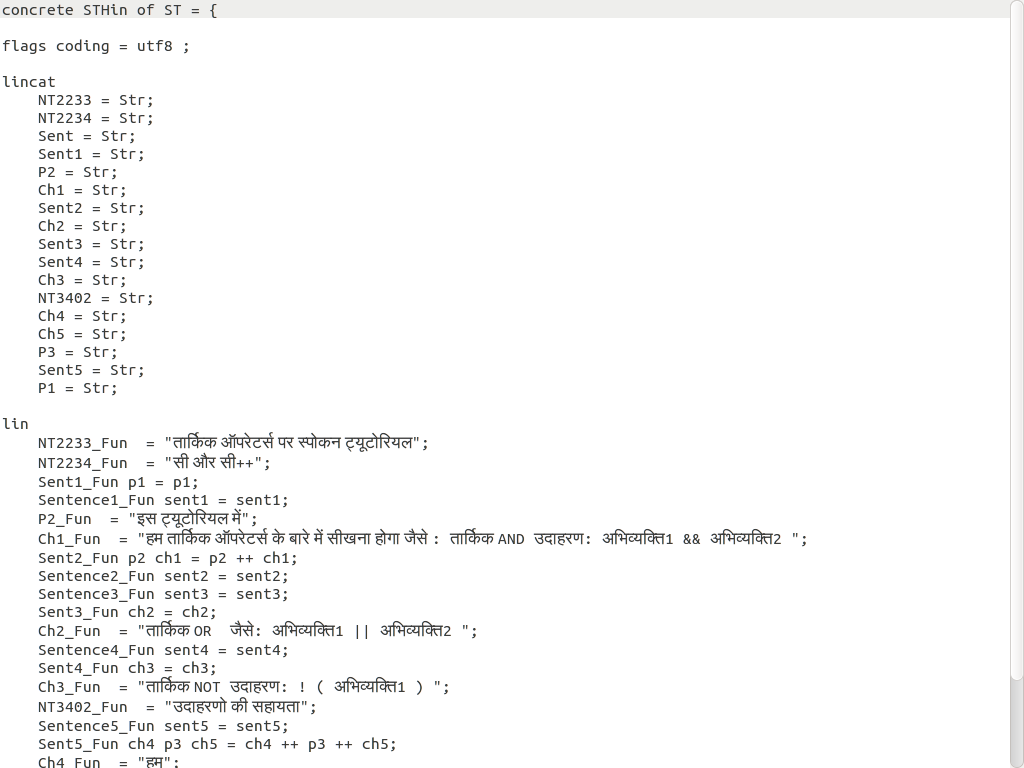

Figure 10: Concrete Hindi GF Grammar

Concrete Hindi

Description :


Induced Concrete Hindi Grammatical Framework rule.
