GSM System Architecture

In GSM system the mobile handset is called Mobile Station (MS). A cell is formed by the coverage area of a Base Transceiver Station (BTS) which serves the MS in its coverage area. Several BTS together are controlled by one Base Station Controller (BSC). The BTS and BSC together form Base Station Subsystem (BSS). The combined traffic of the mobile stations in their respective cells is routed through a switch called Mobile Switching Center (MSC). Connection originating or terminating from external telephone (PSTN) are handled by a dedicated gateway Gateway Mobile Switching Center (GMSC). The architecture of a GSM system is shown in the figure 2.1 below.

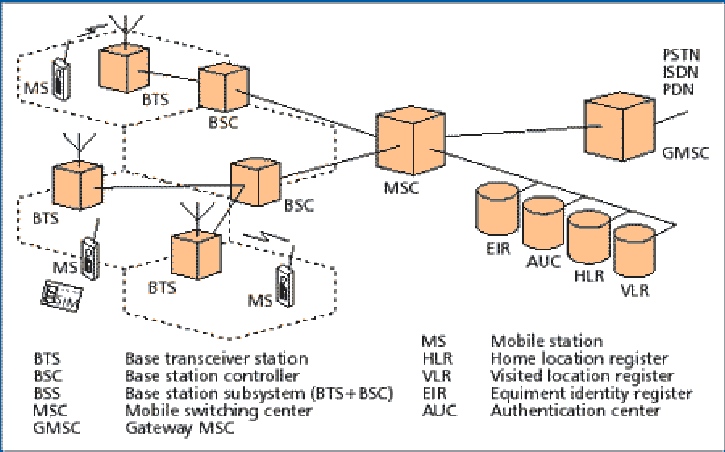

Figure 2.1: GSM Architecture (Source: Bettstetter et. all)

In addition to the above entities several databases are used for the purpose of call control and network management. These databases are Home Location Register (HLR), Visitor Location Register (VLR), the Authentication Center (AUC), and Equipment Identity Register (EIR).

Home Location Register (HLR) stores the permanent (such as user profile) as well as temporary (such as current location) information about all the users registered with the network. A VLR stores the data about the users who are being serviced currently. It includes the data stored in HLR for faster access as well as the temporary data like location of the user. The AUC stores the authentication information of the user such as the keys for encryption. The EIR stores stores data about the equipments and can be used to prevent calls from a stolen equipments.

All the mobile equipments in GSM system are assigned unique id called IMSI (International Mobile Equipment Identity) and is allocated by equipment manufacturer and registered by the service provider. This number is stored in the EIR. The users are identified by the IMSI (International Module Subscriber Identity) which is stored in the Subscriber Identity Module (SIM) of the user. A mobile station can be used only if a valid SIM is inserted into an equipment with valid IMSI. The ``real'' telephone number is different from the above ids and is stored in SIM.
